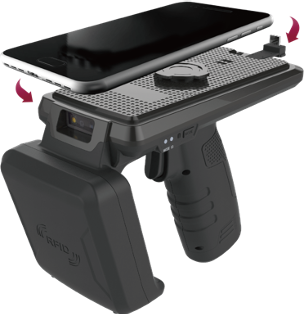

BUTTERFLY

BUTTERFLY 제품 사양

Performance Characteristics
Processor	ARM7 Core
Standard Supported	EPC Gen2 ISO 18000-6C EPC Gen2 ISO 18000-6B
Fastest Read Rate	Circular antenna: Up to 5m(Alien 9740 tag) -> Standard Type Linear antenna: Up to 15m(Alien 9740 tag) -> TBD
Frequency Range	902-928MHz (US) 865-868MHz (EU) 916-921MHz (Japan 1w LBT) 916-923MHz (Japan 0.25w LBT) and other country support
Barcode	1D/2D (Honeywell 6603)
Drop Specification	1.5M drop to steel
Operating Temp.	-20 °C to 50 °C
Storage Temp.	-30 °C to 70 °C
Charging Temp.	0°C to 45°C
Humidity	95% non - condensing
Sealing	IP65
Bluetooth	Bluetooth 4.1 Classic , BLE
Bluetooth Profile	HID / SPP / BLE
Compatible Host Devices (Bluetooth)	Windows 7 or above Android Ver 4.2 above iOS at BLE Ver 9 above
Connected data interface	USB type-C
User Interface	Side Mode button, PWR button, Gun-Trigger button
Notification	Connection status LED, PWR LED, Mode LED, Buzzer, Vibrator
Power	DC 7.2V 3350mAh 24.12Wh Rechargeable Li-ion Battery Pack
Dimension	76 (W) x 193.9 (L) x 141.5 (H) mm
