AT880 PDAPDA
산업용 PDA / BARCODE Reader
최신 사양이 적용된 산업용 PDA

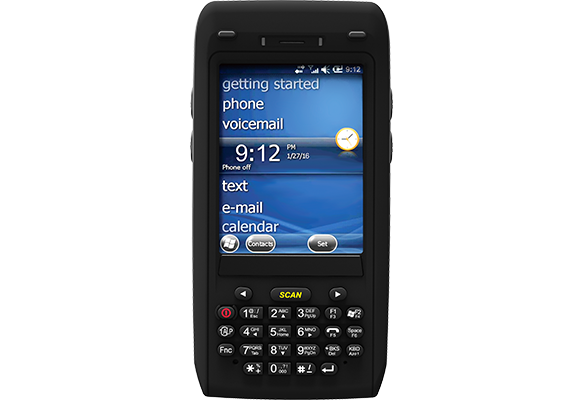

AT880PDA
AT880 PDA 제품 사양
| Performance Characteristics | |
|---|---|
| Processor | Marvell™ PXA320 806Mhz |
| Operating System | Windows CE 5.0 / Windows Embedded Hand Held 6.5* |
| Memory | RAM 512MB/ROM 512MB |
| Display | 3.5" QVGA with Backlight TFT LCD, 240x320Pixel, 262,144 Color (VGA 480x640pixel Avaliable*) |
| Weight | 280g (PDA only, without battery) |
| Operating Temp. | -20℃ ~ 60℃ |
| Storage Temp. | -30℃ ~ 70℃ |
| Humidity | 95% non-condensing |
| Drop Spec. | 1.5M Drop to concrete |
| Dust & Water Proof | IP65 |
| Physical Characteristics | |
| Audio | Phone Receiver, Stero Speaker, Ear Jack, Micropohone |
| Satandard I/O Port | USB 1.1 Client / USB Host & Serial (RS-232) via gender cable or Cradle |
| Expansion Slot | 1 Micro SD Slot (SDHC) ,1 SIM Slot, 1 SAM Slot |
| Notification | Vibrator and LED, Speaker |
| Dimensions (L x W x H) | 159 x 79 x 27 mm |
| Battery Supply | |
| Main Battery | Lithium-Ion Polymer 3.7V 3,300mAh (Rechargeable) Up to 4,400mAh* |
| Backup Battery | Lithium-Ion Polymer 3.7V 80mAh (Rechargeable) |
| Power Adapter | Input AC110V ~ 240V / Output DC 5V 3A |
| Network Characteristics | |
| WLAN | IEEE 802.11 a/b/g/n Compliant (Cisco Compatible Extensions Wi-Fi Alliance) |
| Bluetooth | Class II v2.1+EDR |
| Radio | GSM / GPRS / EVDO / CDMA / WDMA / UMTS / HSDPA / HSPA+ |
| GPS | Internal Antenna |
| Data Capture & Data Processing Device | |
| Barcode Engine | 1D Laser or 2D Imager Scanner |
| Printer | None |
| Camera | 3Mega Pixel Fixed Focus with Flash |
| Magnetic Card Reader | None |
| Smart Card Reader | None |
| Finger Print | None |
| Cradle | |
| Stardard Interface | USB 1.1 Host / USB Client / DC Power Jack / Extra Battery Charger / Serial(RS232) via gender cable |
| Ethernet Interface | RJ-45 Ethernet Interface* |
| Accessories* | |
| Gun Handle Grip (Pisto Grip) | Body, UHF / HF Avaliable |
| Gun Handle Battery | Lithium-Ion 3.7V 4,400mAh(Rechargeable)* |
| Common Accesories | |
| Stylus Pen, LCD Protec Flim, Hand Strap, Veichle Cradle, Leather Case, Cigar Charger and Etc. | |
